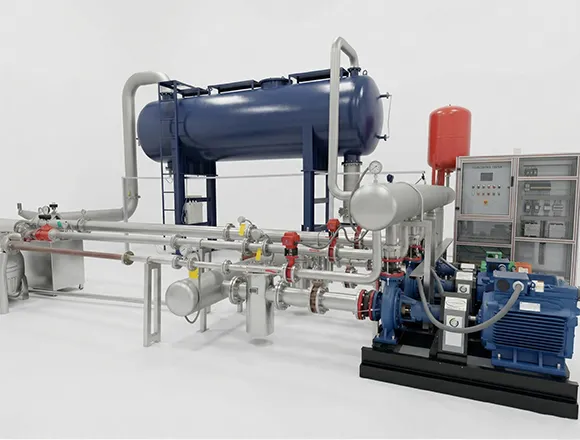

CV and Control Valve Test Rig
The CV and Control Valve Test Rig is a sophisticated machine designed to evaluate the performance characteristics of control valves. It measures the pressure drop across the valve to calculate its flow coefficient (Cv) at various levels of valve opening, generating comprehensive graphs that illustrate the relationship between flow rate and pressure drop. The system also assesses discrepancy between theoretical Cv values and actual test results.
Key Specifications
Key Features
Accurate pressure drop measurement across the valve
Flow coefficient (Cv) calculation at various opening percentages
Graphical analysis of flow rate vs. pressure drop
Error measurement comparing theoretical vs. actual Cv values
VFD-controlled pump cascade for precise flow regulation
Proportional control valve for throttling operation
