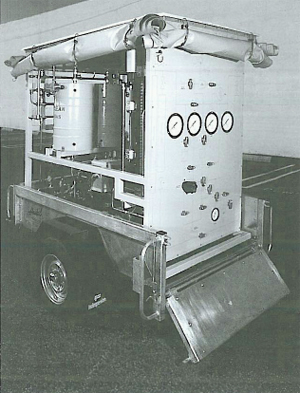

Paskals SF6 Gas Carts are designed to evacuate, recover, dry, filter, clean, store and recharge the purified SF6 gas after maintenance work on high-voltage equipment.

Paskals offers a choice of five standard models, any of which can be modified or customized to suit customer specifications. Units include a Paskals Gas Booster/Compressor, molecular sieve filters, storage tanks, condenser, after-cooler for liquifying gas, full mimic control panels with all necessary gauges, valves, pressure regulators and controls.

Features:

Oil free - non-contaminating, booster/compressor can be operated dry - no lubrication necessary.

Economical - unit handles SF6 in liquid or gas state. No phase control needed. No heat generated during liquid phase.

Liquification - two-stage positive displacement booster/compressor provides liquification without the need for a condenser.

Simple - Mimic Control Panel means no special operator skills required for any operation. Fully mobile, go-anywhere cart.

Extra filtration - molecular sieve filters remove toxic corrosive byproducts. Additional filtration provided by transforming from "Reclaim: to "Re-use" vessel in the liquid state.

Sampling - gas sample points provided to measure dew-point, acidity and O2 content.

Quality - manufactured to ISO 9001 (BS 5750 pt. 1). Approved by National Grid PLC, United Kingdom.

Technical support - worldwide technical support by Haskel subsidiaries and fully-trained distribution.

Safe - Designed using Haskel's long and proven experience in handling gases at high pressure.

Fast pay-back - capital costs rapidly repaid by total recycling of expensive gas.
